SCHEMA OGLINZI BMW

CV-03-BTF

By CV-03-BTF
in BMW Autobahn

 Share

Recommended Posts

CV-03-BTF Newbie

CV-03-BTF

Posted
  • Author
Posted (edited)
Pt ce masina ai nevoie?

pai oglinzile sunt de la un ford capri... e vorba de un proiect mai amplu..!!

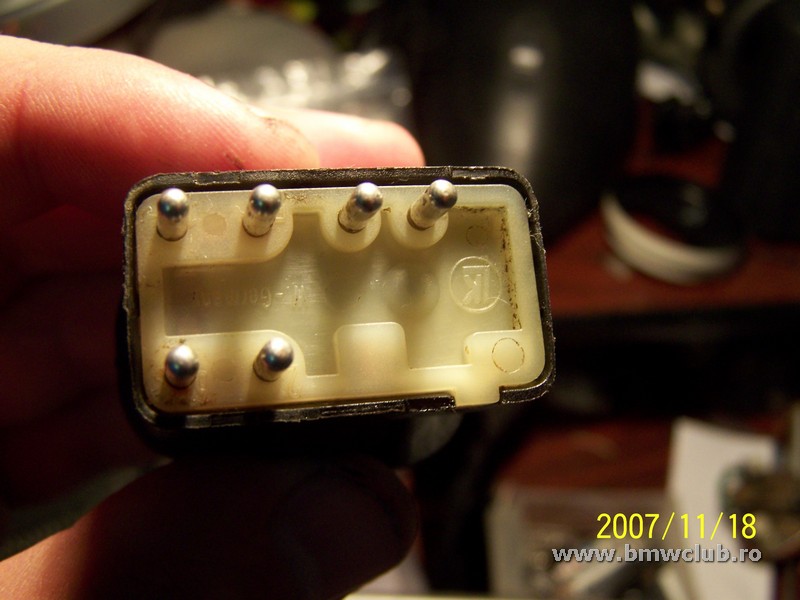

modulele si joystick-ul de bmw... schema mi-ar trebui de la joystick ( BMW)

la modulul de comanda al oglinzii. ...care vad ca e la fel pe partea electrica cu cel de la alte auto...

plz help.. vreau sa plec in 2 zile cu tinikeaua...

Edited by CV-03-BTF
Link to comment
Share on other sites
CV-03-BTF Newbie

CV-03-BTF

Posted
  • Author
Posted

multumesc frumos...dar nu reusesc sa gasesc schema electrica.....

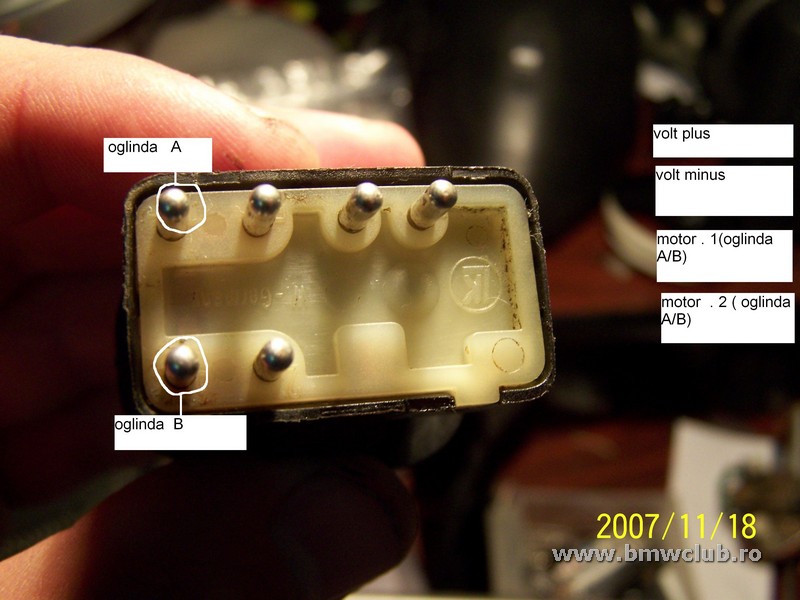

deci primii 2 pini pe verticala..din stanga schimba comanda de pe o oglinda pe alta...cel mai probabil firul comun de la motoarele oglinzii A ( de ex..) vine la unul din pinii mai sus amintiti.. pe ceilalti 4 pini ar trebui so vina un plus...un minus... cate un fir de la cele 2 electromotoare ale oglinzii....

precizez ca am incercat eu niste " permutari " dar fara nici un rezultat...!


Link to comment
Share on other sites
  • 2 weeks later...
clauberty1 Newbie

clauberty1

Posted
Posted

multumesc frumos...dar nu reusesc sa gasesc schema electrica.....

deci primii 2 pini pe verticala..din stanga schimba comanda de pe o oglinda pe alta...cel mai probabil firul comun de la motoarele oglinzii A ( de ex..) vine la unul din pinii mai sus amintiti.. pe ceilalti 4 pini ar trebui so vina un plus...un minus... cate un fir de la cele 2 electromotoare ale oglinzii....

precizez ca am incercat eu niste " permutari " dar fara nici un rezultat...!



http://www.carsoft.ru/avtorepair/bmw_e34/E34.html



la "Power mirrors" :blink:
