modul nav bmw 320/e46(mk4dvd)

Featured Replies

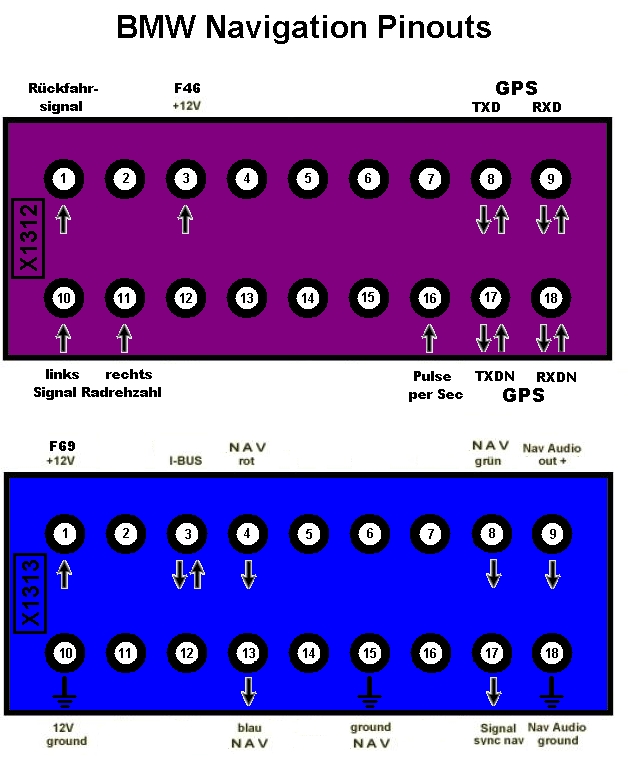

va salut! domnul manole ,am o rugaminte ,aveti cumva o schema cablaj-conexiuni modul mk4-bm54-tv[semnificatia pinilor.?ptr bm si tv am gasit configuratia ,dar ptr mk4 ,nu.am nav pe e46 ,dar fara tv si vreau sa folosesc un dvd auto prin modul tv .va rog sa ma ajutati .mersi frumos!

Salut. La E46 semnalul video pleaca de la MK4, intra in TV si mai apoi merge in monitor.




Exista un cablaj retrofit pentru modulul TV la E46 care are doar navi.

Este ca un Y (alimentare si semnal video) + doua fire care merg in BM54 (sunetul TV).
